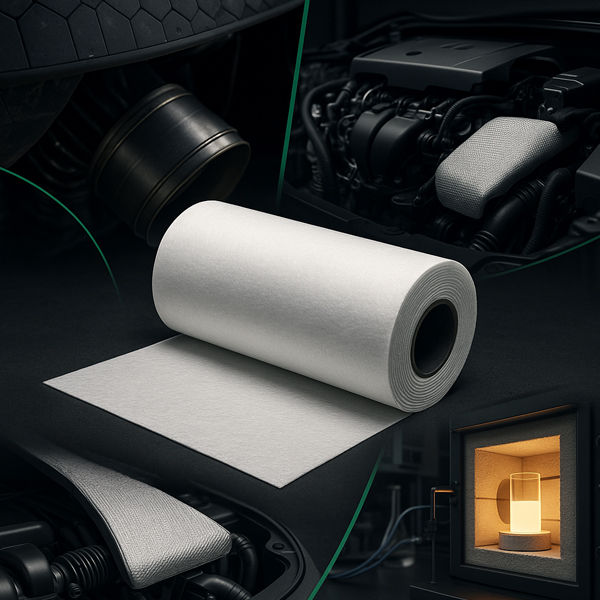

Quartz Fiber Wet-Laid Mat

Quartz Fiber Wet-Laid Mat


Quartz fiber wet-laid mats exhibit superior thermal resistance up to 1000° C, outperforming fiberglass mats which typically withstand around 500° C-600° C. With higher chemical stability and better dielectric properties due to purer quartz fibers, these mats provide excellent electrical insulation. The production process yields a smooth and consistent mat, offering advantages in high-precision applications, and in uses requiring high-performance insulation and superior laminate surface quality.


Technical Features:

Area Weight(g/m2) Thickness(mm) Tensile Strength(N/50mm) Wetting Out(s) Width(mm)
30 0.03 ≥ 20 Ç 10 50-2500
50 0.05 ≥ 30 Ç 20
30 0.03 ≥ 25 Ç 10
50 0.05 ≥ 40 Ç 16
90 0.09 ≥ 100 /
105 0.11 ≥ 110 /
