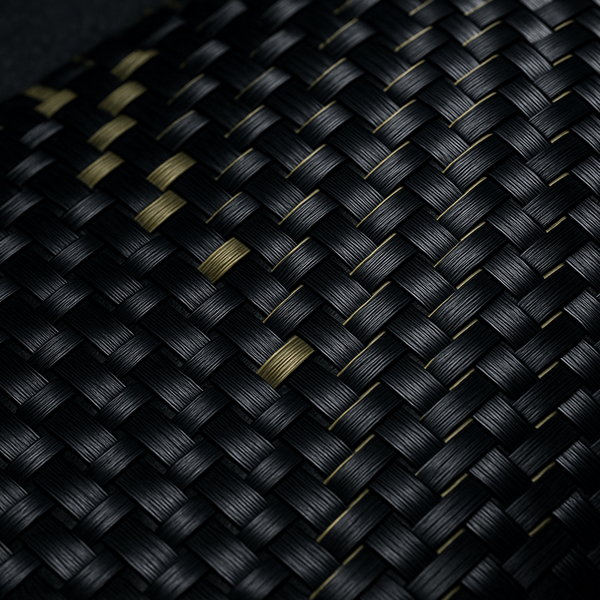

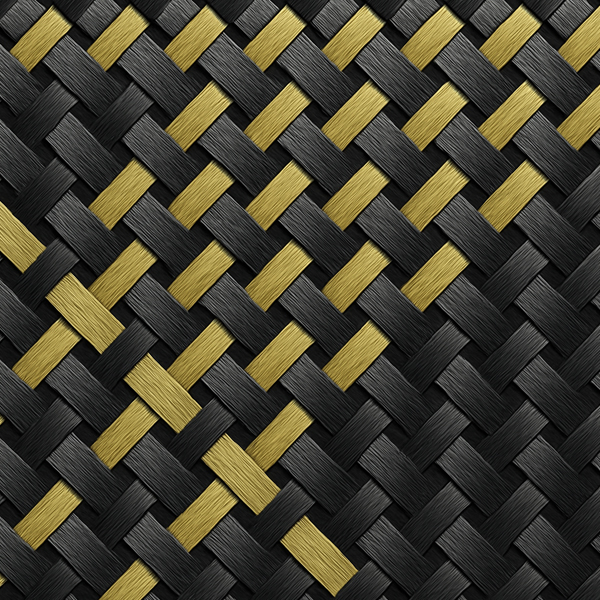

Carbon-Aramid Hybrid Fabric merges the high strength and stiffness of carbon fiber with the impact resistance and durability of aramid, creating a material less brittle and more resilient than solely carbon fiber fabric. This makes it ideal for applications requiring both strength and toughness, such as protective gear and high-impact sports equipment, while still maintaining a lightweight profile.
Carbon fiber has a tensile strength of about 2,500-6,000 MPa, making it one of the strongest fibers, particularly when aligned in the same direction.
Carbon fiber retains its properties up to about 2,500° C in non-oxidizing environments, far surpassing many other fibers in terms of thermal stability.
The density of carbon fiber is around 1.5-2.0 g/cm³, significantly lighter than steel (7.85 g/cm³), contributing to its high strength-to-weight ratio.
Carbon fibers exhibit high modulus, i.e., stiffness, typically 200-700 GPa, which means they deform very little under load, ideal for aerospace, sports equipment, and automotive industries.
| Weave | Weight(g/m2) | Thickness(mm) | W(mm)*L(m) |
|---|---|---|---|
| Plain | 100 | 0.11 | 1000*100 |
| Plain | 190 | 0.27 | |
| Twill | 190 | 0.27 | |
| Plain | 190 | 0.27 | |
| Twill | 190 | 0.27 | |
| "I"WEAVE | 190 | 0.28 |
